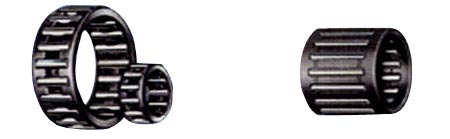

Radial Needle and Cage Assemblies for Pin

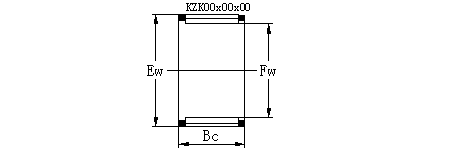

Shaft Diameter Bearing Designation Mass Approx Boundary Dimensions Basic Load Rating
Current Original Code Fw Ew Bc Cr Dynamic Cor Static
mm g mm N
8 KZK8*12*8 19242/8 1.9 8 12 8 4700 4580
10 KZK10*14*10 29242/10 3.3 10 14 10 5000 5160
12 KZK12*15*13 49241/12 3.6 12 15 13 5300 7400
KZK12*16*10 29242/12 3.5 12 16 10 6100 6900
KZK12*16*11 - 3.7 12 16 11 6200 7100
KZK12*17*10 19243/12 5 12 17 10 7020 7020
KZK12*18*10 19242/12 7.8 12 18 10 7400 7200
14 KZK14*18*10 29241/14 4 14 18 10 7100 8500
KZK14*19*10 19242/14 5.5 14 19 10 7300 7600
KZK14*19*10 - 7.5 14 19 12 7460 7950
KZK14.4*20.4*10 - 6.5 14 20.4 10 8100 7800
15 KZK15*19*9 - 5 15 19 9 6800 7100
KZK15*19*10 29241/15 6 15 19 10 7200 8400
KZK15*20*10 19242/15 7.5 15 20 10 7800 9100
KZK15*21*10 - 8.5 15 21 10 8400 10500
KZK15*21*11 - 9.5 15 21 11 8500 10700
KZK15.2*22.2*12 - 11.5 15 22.2 12 8600 11100
16 KZK16*20*10 29241/16 5.8 16 20 10 8200 9200
KZK16*20*24 79241/16 6.3 16 20 24 8700 9400
KZK16*21*10 19242/16 5.8 16 21 10 8800 9800
KZK16*22*12 19243/16 9.5 16 22 12 11000 11900
KZK16*22*14 - 11 16 22 14 13200 13930
17 KZK17*21*10 29241/17 6.7 17 21 10 7600 900
KZK17*23*11 - 9.5 17 23 11 8100 11300
18 KZK18*22*10 29241/18 6.9 18 22 10 7600 9800
KZK18*22*24 - 7.2 18 22 24 10100 17200
KZK18*24*11.6 19243/18 10 18 24 11.6 11600 13100
KZK18*24*12 19243/18 10 18 24 12 11600 13100
KZK18*24*13.3 - 12.4 18 24 13.3 9000 10700
KZK18*24*13.5 - 12.4 18 24 13.5 9000 10700
KZK18*24*15 29243/18 14 18 24 15 13200 15500
19 KZK19*25*16 19244/19K 13.9 19 25 16 12100 15500
KZK19*28*14 - 20 19 28 14 12100 15000
20 KZK20*25*16 - 12 20 25 16 9900 12300
KZK20*26*12 19243/20 9.6 20 26 12 10100 12500
KZK20*26*14 - 12 20 26 14 12600 16700
KZK20*26*17 9246/20 17 20 26 17 12700 17600


Shaft Diameter Bearing Designation Mass Approx Boundary Dimensions Basic Load Rating
Current Original Code Fw Ew Bc Cr Dynamic Cor Static
mm g mm N
22 KZK22*28*13 - 15 22 28 13 11900 16500
KZK22*28*14 - 16 22 28 14 12600 16800
KZK22*28*15 29242/22 16.7 22 28 15 13500 18500
KZK22*28*16 29243/22K 18 22 28 16 14400 20100
KZK22*29*15 - 15.2 22 29 15 17800 21800
KZK22*29*16 19244/22 19 22 29 16 17800 21800
KZK22*30*16 SZ-432 25.7 22 30 16 18700 22300
23 KZK23*29*13 - 12 23 29 13 10000 11300
KZK23*30*14 - 19.4 23 30 14 9350 10100
KZK23*30*16 - 22 23 30 16 9780 11800
23.1 KZK23.1*28.1*14 29242/23.1 12.9 23.1 28.1 14 10600 15800
24 KZK24*30*15 - 17 24 30 15 11200 13700
KZK24*30*16 - 18 24 30 16 11200 13700
25 KZK25*30*28 69245/25 24 25 30 28 13300 15200
KZK25*31*12 19243/25K 16 25 31 12 8700 8800
KZK25*31*17 39243/25 23 25 31 17 9200 9750
KZK25*31*20 49243/25 26 25 31 20 9700 10600
KZK25*32*16 19244/25 22.7 25 32 16 18200 23100
25.1 KZK25.1*30.1*14 - 14.1 25.1 30.1 14 13700 19000
26 KZK26*34*16 9248/28 25 26 34 16 11700 17500
28 KZK28*33*14 - 15.7 28 33 14 13200 21900
KZK28*34*14 - 20 28 34 14 16500 20700
KZK28*35*15 - 25 28 35 15 18000 22000
KZK28*35*16 19243/28 27 28 35 16 18900 23000
KZK28*36*16 - 29.1 28 36 16 19500 27000
KZK28*38*13.6 - 40 28 38 13.6 17300 20300
30 KZK30*36*16 - 28.5 30 36 16 18900 22800
KZK30*37*16 19243/30 29 30 37 16 21500 30500
KZK30*38*16 - 34.4 30 38 16 22700 32600
KZK30*38*18 - 38.8 30 38 18 26200 39600
32 KZK32*40*22 19244/32K 50 32 40 22 27800 39300
KZK32*42*20 - 54 32 42 20 29000 41000
35 KZK35*42*20 29243/35 10 35 42 20 26000 40200
38 KZK38*46*20 19244/38 50 38 46 20 31100 43000
40 KZK40*48*17 - 50 40 48 17 29000 39000
KZK40*48*20 19244/40 54 40 48 20 32500 51000


Shaft Diameter Bearing Designation Mass Approx Boundary Dimensions Basic Load Rating
Current Original Code Fw Ew Bc Cr Dynamic Cor Static
mm g mm N
8 KBK8*11*12 39241/8 1.85 8 11 10 3500 4000
KBK8*12*10 29242/8 2 8 12 10 3700 4100
9 KBK9*12*11.5 - 2.4 9 12 11.5 4200 4800
KBK9*12*13 49241/9 2.75 9 12 13 4600 5800
KBK9*12*14 - 3.5 9 12 14 4700 5900
KBK9*13*12 39242/9 4.1 9 13 12 5300 5700
KBK9*13*12.5 - 4.9 9 13 12.5 5300 5700
KBK9*13*13 39242/9 5.1 9 13 13 5350 5600
10 KBK10*13*8 29241/10 2 10 13 8 4000 5000
KBK10*13*10 39241/10 2.4 10 13 10 4200 5200
KBK10*13*14.5 59241/10 5.1 10 13 14.5 5400 6600
KBK10*13*16 - 5.7 10 13 16 6800 7700
KBK10*14*10 29242/10 3.4 10 14 10 4400 4600
KBK10*14*11 - 4 10 14 11 5200 5700
KBK10*14*12 - 4.5 10 14 12 5400 6000
KBK10*14*12.5 - 4.85 10 14 12.5 5600 6200
KBK10*14*13 39242/10 5.4 10 14 13 5600 6200
11 KBK11*15*17 - 5 11 15 17 5200 7000
12 KBK12*15*13 49241/12 4.6 12 15 13 5500 7300
KBK12*15*14.3 - 5.4 12 15 14.3 5800 7700
KBK12*15*15 59241/12 5.6 12 15 15 5900 7800
KBK12*15*16.5 - 6.2 12 15 16.6 6800 9900
KBK12*15*17 69241/12 6.3 12 15 17 7000 10000
KBK12*15*17.5 - 6.5 12 15 17.5 7000 10000
KBK12*16*13 39242/12 6.7 12 16 13 6300 7600
KBK12*16*15 149242/12K 7.9 12 16 15 7500 9000
KBK12*16*15.5 - 8.3 12 16 15.5 7600 10000
KBK12*16*16 59241/12 8.5 12 16 16 7800 9300
KBK12*16*17 59242/12 9.2 12 16 17 7900 9400
KBK12*17*14 - 8 12 17 14 8000 9500
KBK12*17*14.3 - 8.4 12 17 14.3 8000 9500
KBK12*17*14.8 - 8.8 12 17 14.8 8300 9800
13 KBK13*17*14.5 - 7.1 13 17 14.5 8300 10200
KBK13*17*17.5 - 8.6 13 17 17.5 9500 12100
14 KBK14*18*10 29241/14 4.6 14 18 10 6260 7400
KBK14*18*12 - 6.6 14 18 12 6380 7570
KBK14*18*13 39241/14 7.6 14 18 13 7300 8700
KBK14*18*14 - 6.33 14 18 14 7400 8800
KBK14*18*14.5 - 8 14 18 14.5 7400 8800

Shaft Diameter Bearing Designation Mass Approx Boundary Dimensions Basic Load Rating
Current Original Code Fw Ew Bc Cr Dynamic Cor Static
mm g mm N
14 KBK14*18*15 49241/14 8.3 14 18 15 7600 8990
KBK14*18*16.5 - 9.6 14 18 16.5 8800 9700
KBK14*18*17 59241/14 10.1 14 18 17 8900 9800
KBK14*18*20 69241/14 12 14 18 20 9000 10100
KBK14*18*21 - 13 14 18 21 10500 12400
KBK14*18*22 - 14 14 18 22 11100 13100
KBK14*19*17 49242/14K 10.3 14 19 17 11100 13100
15 KBK15*19*10 29241/15Y 5 15 19 10 6500 8600
KBK15*19*18 - 11 15 19 18 9900 11300
KBK15*19*19 - 12 15 19 19 10100 12800
KBK15*19*20 69241/15 12.9 15 19 20 11300 15500
KBK15*20*24 SZ-433 18.6 15 20 24 14100 20000
16 KBK16*20*19 - 12 16 20 19 11700 16800
KBK16*20*20 69241/16Y 13.4 16 20 20 12900 17600
KBK16*20*21 - 14 16 20 21 12900 17600
KBK16*20*22 - 15 16 20 22 13000 18700
KBK16*21*19 59242/16 16 16 21 19 13000 18700
17.5 KBK17.5*22*16 - 9.3 17.5 22 16 11000 16300
18 KBK18*22*22 - 16.9 18 22 22 11500 17700
KBK18*22*23.5 - 18 18 22 23.5 11900 19000
KBK18*22*24 - 18.4 18 22 24 12000 20000
KBK18*22*25 - 19.1 18 22 25 12700 20100
KBK18*23*21 - 18 18 23 21 9900 10100
KBK18*23*23 69242/18 20 18 23 23 10500 12000
KBK18*24*20 49243/18 20 18 24 20 20000 25000
20 KBK20*24*30 - 22.1 20 24 30 14900 25500
KBK20*25*22 - 19.5 20 25 22 15200 22300
KBK20*25*25 - 23 20 25 25 17100 24000
