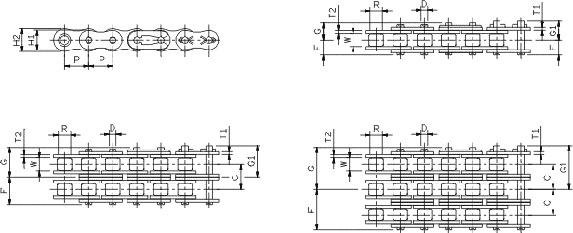

Roller Chain (Heavy Duty Chain) CHAIN NO. Pitch Width Roller Plate Pin Transverse Average Ultimate Approx Weight P W Dia Height Thickness Dia Lengths Pitch Strength   inch mm mm R H1 H2 T1 T2 D F G G1 C kgf kg/m 25H 1/4" 6.35 3.18 3.30 5.00 5.80 1.00 1.00 2.30 4.50 5.10 --- --- 560 0.16 50H 5/8" 15.88 9.53 10.16 13.00 14.80 2.40 2.40 5.06 10.90 12.40 12.90 --- 3100 1.12 50H-2 5/8" 15.88 9.53 10.16 13.00 14.80 2.40 2.40 5.06 20.65 22.25 22.75 --- 6200 2.25 60H 3/4" 19.05 12.70 11.91 15.50 17.50 3.10 3.10 5.95 14.10 15.70 16.60 --- 4400 1.81 60H-2 3/4" 19.05 12.70 11.91 15.50 17.50 3.10 3.10 5.95 27.20 28.80 29.70 26.11 8800 3.57 60H-3 3/4" 19.05 12.70 11.91 15.50 17.50 3.10 3.10 5.95 40.20 41.80 42.70 26.11 13200 5.16 80H 1" 25.40 15.88 15.88 20.80 24.00 3.90 3.90 7.94 17.90 --- 20.80 --- 8000 2.95 80H-2 1" 25.40 15.88 15.88 20.80 24.00 3.90 3.90 7.94 34.20 --- 37.10 32.59 16000 5.85 80H-3 1" 25.40 15.88 15.88 20.80 24.00 3.90 3.90 7.94 50.50 --- 53.40 32.59 24000 8.32 100H 1-1/4" 31.75 19.05 19.05 24.80 30.10 4.70 4.70 9.52 21.70 --- 24.90 --- 12000 4.45 100H-2 1-1/4" 31.75 19.05 19.05 24.80 30.10 4.70 4.70 9.52 41.25 --- 44.45 39.09 24000 8.34 100H-3 1-1/4" 31.75 19.05 19.05 24.80 30.10 4.70 4.70 9.52 60.80 --- 64.00 39.09 36000 12.03 120H 1-1/2" 38.10 25.40 22.23 30.00 35.00 5.60 5.60 11.10 26.98 --- 30.57 --- 16000 6.78 120H-2 1-1/2" 38.10 25.40 22.23 30.00 35.00 5.60 5.60 11.10 51.40 --- 55.05 48.90 32000 13.45 120H-3 1-1/2" 38.10 25.40 22.23 30.00 35.00 5.60 5.60 11.10 75.90 --- 79.45 48.90 48000 20.13 140H 1-3/4" 44.45 25.40 25.40 36.20 42.00 6.40 6.40 12.70 28.90 --- 33.10 --- 21500 8.12 140H-2 1-3/4" 44.45 25.40 25.40 36.20 42.00 6.40 6.40 12.70 55.15 --- 59.05 52.20 43000 16.10 140H-3 1-3/4" 44.45 25.40 25.40 36.20 42.00 6.40 6.40 12.70 81.10 --- 85.30 52.20 64500 24.02 160H 2" 50.80 31.75 28.58 41.40 48.00 7.20 7.20 14.28 34.15 --- 38.85 --- 27500 10.87 160H-2 2" 50.80 31.75 28.58 41.40 48.00 7.20 7.20 14.28 65.10 --- 69.80 61.90 55000 20.85 160H-3 2" 50.80 31.75 28.58 41.40 48.00 7.20 7.20 14.28 96.05 --- 100.75 61.90 82500 30.83 180H 2-1/4" 57.15 35.71 35.71 46.70 54.20 8.00 8.00 17.45 38.10 --- 43.80 --- 36000 15.20 180H-2 2-1/4" 57.15 35.71 35.71 46.70 54.20 8.00 8.00 17.45 72.68 --- 78.38 69.16 72000 30.10 180H-3 2-1/4" 57.15 35.71 35.71 46.70 54.20 8.00 8.00 17.45 107.26 --- 112.96 69.16 108000 45.00 200H 2-1/2" 63.50 38.10 39.68 51.80 60.10 9.50 9.50 19.84 42.75 --- 50.05 --- 52000 17.80 200H-2 2-1/2" 63.50 38.10 39.68 51.80 60.10 9.50 9.50 19.84 81.91 --- 89.20 78.31 104000 35.20 200H-3 2-1/2" 63.50 38.10 39.68 51.80 60.10 9.50 9.50 19.84 121.06 --- 128.36 78.31 156000 52.50
