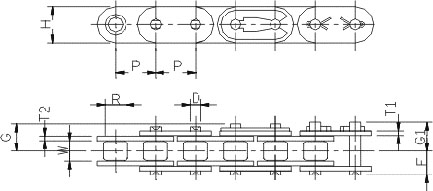

Roller Chain
("B" Straight link pl Chain)
| CHAIN NO. |
Pitch x Width |
Width |
Roller |
Plate |
Pin |
Average Ultimate |
Approx Weight |
| P x W |
W |
Dia |
Height |
Thickness |
Dia |
Lengths |
Strength |
|
| inch |
mm |
R |
mm |
H |
T1 |
T2 |
D |
F |
G |
G1 |
kgf |
kg/m |
| 06B | 0.375" | 9.525 | 5.72 | 6.35 | 8.10 | 1.00 | 1.25 | 3.28 | 6.10 | 7.40 | --- | 1050 | 0.39 |
| 08BF | 0.5" | 12.700 | 7.75 | 8.51 | 11.80 | 1.50 | 1.50 | 4.44 | 8.20 | 9.50 | --- | 1930 | 0.75 |
| 10BF | 0.625" | 15.875 | 9.65 | 10.16 | 14.60 | 1.65 | 1.65 | 5.06 | 9.60 | 11.10 | --- | 2700 | 1.00 |
| 12BF | 0.75" | 19.050 | 11.68 | 12.07 | 16.00 | 1.80 | 1.80 | 5.72 | 11.10 | 12.60 | --- | 3400 | 1.29 |
| 16BGL-24 | 1" | 25.400 | 17.02 | 15.88 | 24.00 | 3.20 | 4.00 | 8.27 | 17.70 | 19.25 | 20.20 | 8000 | 3.30 |
| 16BF | 1" | 25.400 | 17.02 | 15.88 | 21.00 | 3.20 | 4.00 | 8.27 | 17.70 | 19.25 | 20.20 | 8000 | 2.70 |
| 20BF | 1.25" | 31.750 | 19.56 | 19.05 | 26.00 | 3.50 | 4.40 | 10.18 | 20.50 | --- | 23.50 | 12000 | 4.25 |
| 24BF | 1.5" | 38.100 | 25.40 | 25.40 | 33.00 | 5.20 | 6.00 | 14.62 | 26.65 | --- | 32.35 | 18000 | 8.20 |
|
