Thrust Ball Bearings
| 1.Thrust
ball bearing
| The series
of dimension |
The range of
type |
| Series 1 |
51105 - 51110 |
| Series 2 |
51205 - 51210 |
|

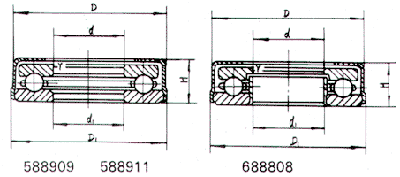

2.Thrust ball bearings with retaining shield
The bearings of this have:588909,588911,688808
| Bearing number |
Dimensions (mm) |
Weight(kg) |
| d |
d1 |
D |
D1 |
H |
| 588909 |
45 |
45.2 |
70 |
73 |
17.2 |
0.212 |
| 588911 |
52.388 |
52.8 |
82 |
84.5 |
20.7 |
0.308 |
| 688808 |
40 |
40.3 |
65 |
67 |
14.25 |
0.165 |
|
